BUILDING STURDY STRUCTURES 49

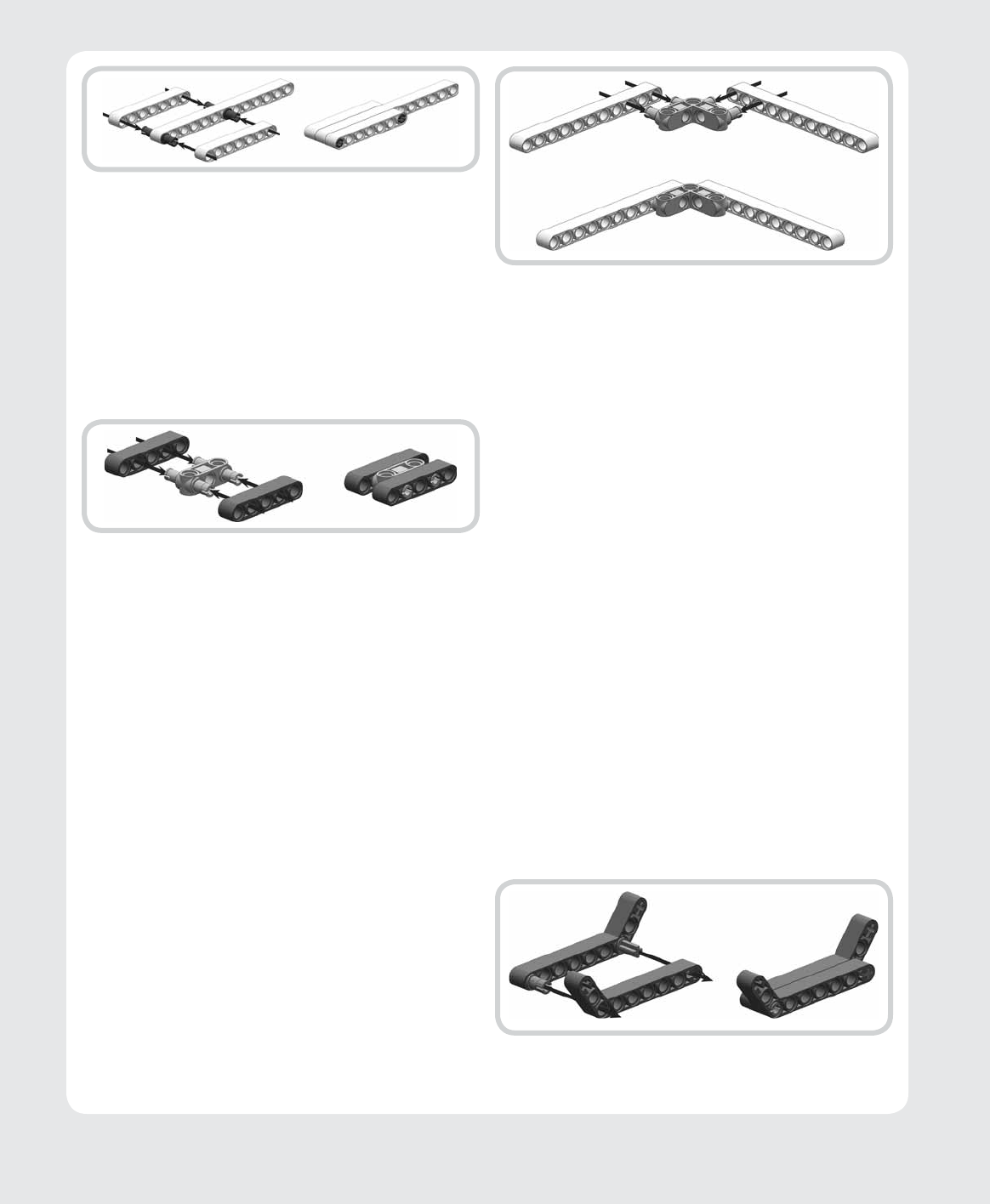

Notice that the examples in Figures 5-4 and 5-5 widen

only part of a beam, whereas the example in Figure 5-6

widens an entire beam. Just like you can extend beams in a

variety of ways, you can widen beams in a variety of ways.

Note also that the beams in Figures 5-4 and 5-5 have an

overlap of 7M, whereas the beams in Figure 5-6 overlap the

3M pegged block by 3M.

forming

corners

For the NXT set, the LEGO Group developed a new piece

called the 5M pegged perpendicular block, which can be used

with beams to form right angles. This technique is useful in

a variety of creations. For example, many stationary robots

that ...
