10.10. Example: The NextGen POS Domain Model
The list of conceptual classes generated for the NextGen POS domain may be represented graphically (see Figure 10.11) to show the start of the Domain Model.

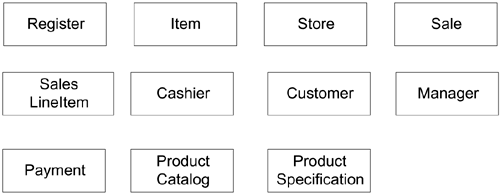

Figure 10.11. Initial Domain Model.
Consideration of attributes and associations for the Domain Model will be deferred to subsequent chapters.
