31.2. More UML Package Notation
Finally, while on the subject of packages, the UML provides alternate notation to illustrate outer and inner packages. Sometimes it is awkward to draw an outer package box around inner packages. Alternatives are shown in Figure 31.6.

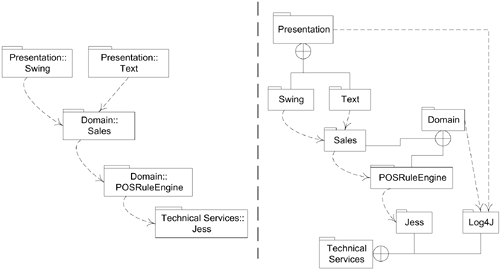

Figure 31.6. Alternate UML approaches to showing packages structure, using UML path names, or the circle-cross symbol.
