35.4. Example Two
In Figure 35.3 and Figure 35.4, Rational Rose is used to illustrate some other core functions in a UML CASE tool.

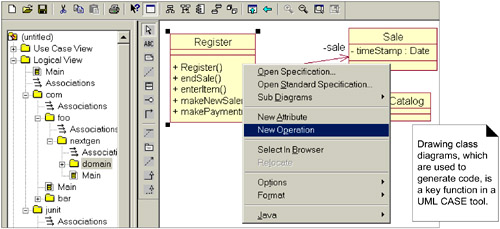

Figure 35.3. Creating class diagrams.

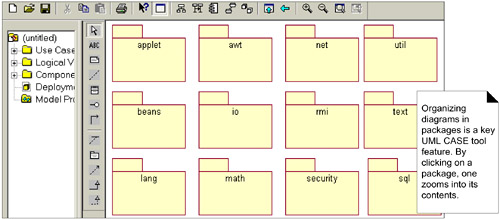

Figure 35.4. Managing packages.
UML CASE Tool Vendor Requests
I suggest consumers make four requests of UML CASE tool vendors:
Implement correct, current UML notation in the tool.
Have the CASE tool development team itself seriously draw, read, and review UML diagrams (including reverse-engineered diagrams) in the process of building the UML tool itself.
Use version N of the UML ...
