Practical VoIP Using VOCAL

Internetwork Marshal Server

The Internetwork Marshal servers connect the VOCAL system to other VoIP systems over IP networks.

Table 6-14 shows the provisioning tasks that can be performed with the Internetwork Marshal servers.

Table 6-14. Internetwork Marshal server tasks

Task	Comments
Adding an Internetwork Marshal server group	Internetwork Marshal server groups are the second sublevel below marshalServers and serverType interNetwork on the directory tree.
Adding an Internetwork Marshal server	Internetwork Marshal servers are the third sublevel below marshalServers, serverType Internetwork, and Internetwork <IP address:port> on the directory tree.
Editing an Internetwork Marshal server	Select a server, edit the fields, and then click OK. Table 6-15 describes the fields.
Adding additional Internetwork Marshal servers	Additional servers can be added as the system grows in size or if greater reliability is desired. Follow the earlier instructions in "Adding New Servers.”
Deleting Internetwork Marshal servers	Select a server and click Delete.

Figure 6-7 shows the Internetwork Marshal server’s data entry fields.

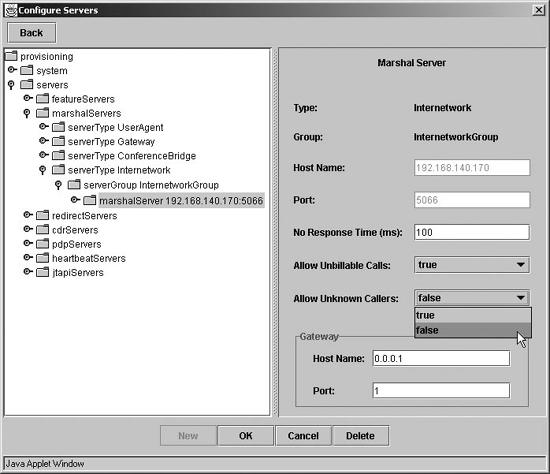

Figure 6-7. Internetwork Marshal server data entry screen

Table 6-15 describes the fields.

Table 6-15. Internetwork Marshal server data entry fields

Field	Description
Type	A notice describing this server’s Marshal server type.
Group	A notice describing ...
