Servicing 68000-based microcomputers 273
Address (Hex)
coooo
40000
28000
20000
18000
ocooo
00000
Expansion I/O
Expansion RAM
System RAM
Screen RAM
I/O
Plug-in ROM
System ROM

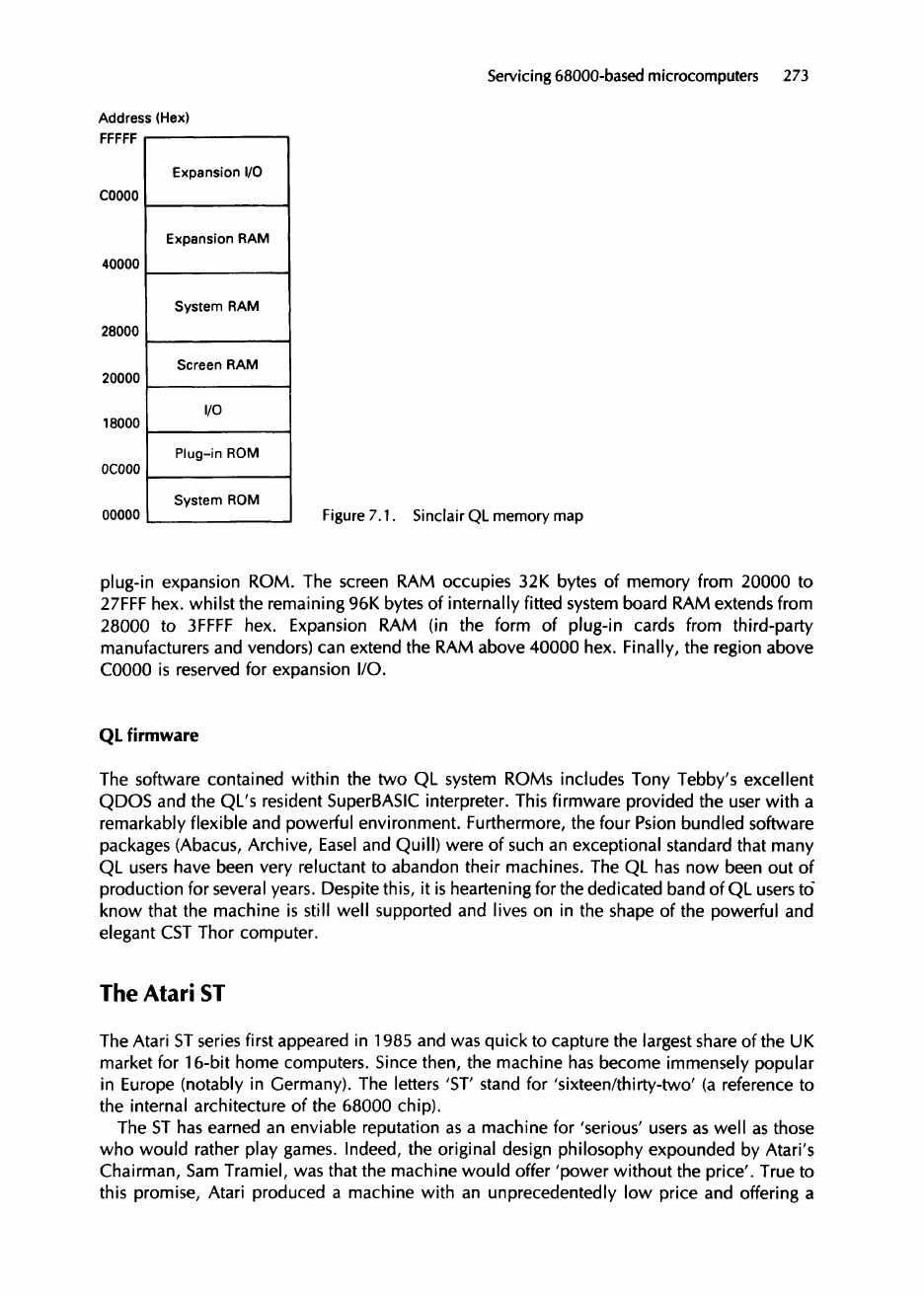

Figure
7.1.
Sinclair QL memory map
plug-in expansion ROM. The screen RAM occupies 32K bytes of memory from 20000 to
27FFF hex. whilst the remaining 96K bytes of internally fitted system board RAM extends from
28000 to 3FFFF hex. Expansion RAM (in the form of plug-in cards from third-party
manufacturers and vendors) can extend the RAM above 40000 hex. Finally, the region above
COOOO is reserved for expansion I/O.
QL firmware
