Top plate design
The top plate is similar to the other plates; it has four small poles of 3 cm, similar to the base plate. The poles can be placed on the hollow tubes from the middle plate. The four poles are connected to the plate itself:

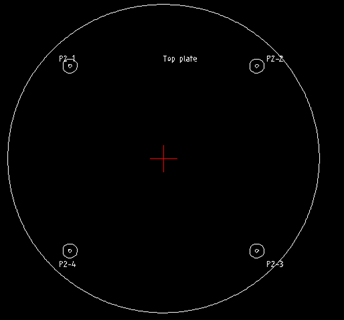

Design of top plate
After the top plate design, the robot chassis design is almost finished. Let's look at the 3D model building of this robot using Blender. The 3D model is built for simulation purposes and the 2D design we build is mainly for manufacturing purposes.
