Learning Robotics using Python - Second Edition

Wheel, motor, and motor clamp design

We have to decide the diameter of the wheel and compute motor requirements. Here, we are giving a typical motor and wheel that we can use if the design is successful:

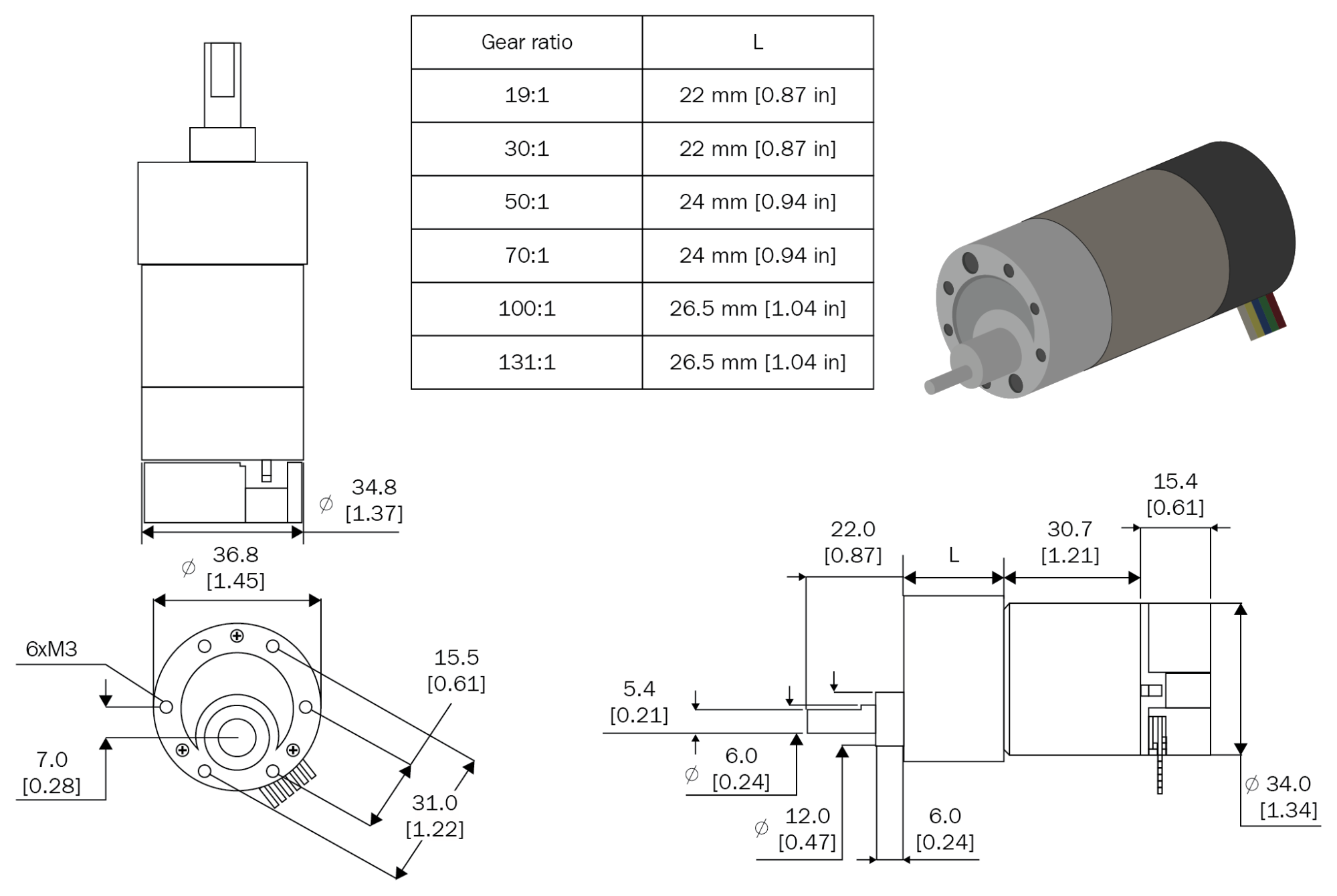

Motor design of robot

The motor design can vary according to the motor selection; if necessary, this motor can be taken as the design and can change after simulation. The L value in the motor diagram can vary according to the speed and torque of the motors. This is the gear assembly of the motor.

The following diagram shows a typical wheel that we can use with a diameter of 90 cm. The wheel with a diameter of 86.5 mm will become 90 mm after ...
