Challenge Exercise | Mechanical
In this exercise, you use what you learned about working with layouts to create and configure a layout with three viewports.

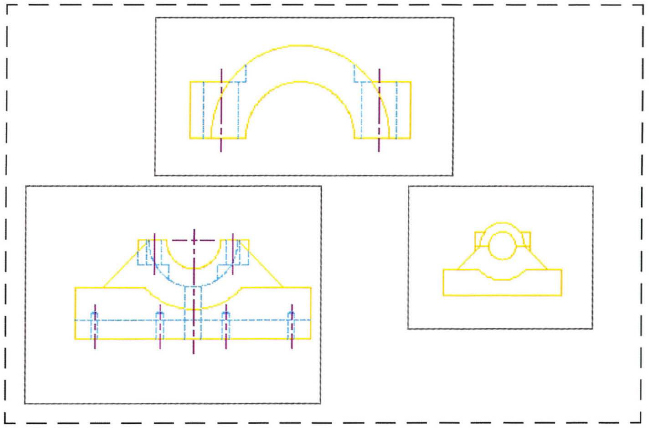

The completed exercise
Completing the Exercise
To complete the exercise, follow the steps in this book or in the onscreen exercise. In the onscreen list of chapters and exercises, click Chapter 6: Working with Layouts. Click Challenge Exercise: Mechanical.
- Open the drawing you saved from the previous challenge exercise, or open M_MECH-Challenge-CHP06.dwg.
- Create a new layout configuration ...
