Exercise | Create Ellipses
In this exercise, you use the Ellipse command to create two full ellipses using two different techniques, trim one of the ellipses so that it becomes an elliptical arc, and then create an elliptical arc with the Ellipse command.

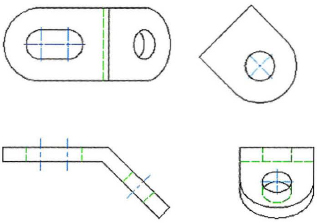

The completed exercise
Completing the Exercise
To complete the exercise, follow the steps in this book or in the onscreen exercise. In the onscreen list of chapters and exercises, click Chapter 11: Creating Additional Drawing Objects. Click Exercise: Create Ellipses.
- Open C_Ellipse.dwg.
