Learning AutoCAD 2010 and AutoCAD LT 2010

Challenge Exercise | Mechanical

In this exercise, you use what you learned about hatching objects to add hatch patterns and fills to the drawing.

Warning!

If completing this exercise in AutoCAD LT, in step 5, use a solid fill instead of a gradient fill.

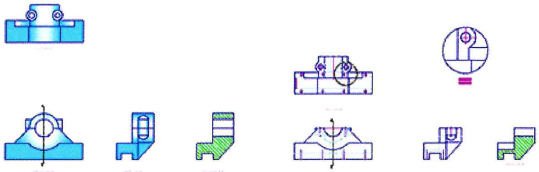

The completed exercise

Completing the Exercise

To complete the exercise, follow the steps in this book or in the onscreen exercise. In the onscreen list of chapters and exercises, click Chapter 9: Hatching Objects. Click Challenge Exercise: Mechanical.

1. Open the drawing you saved from the previous ...
