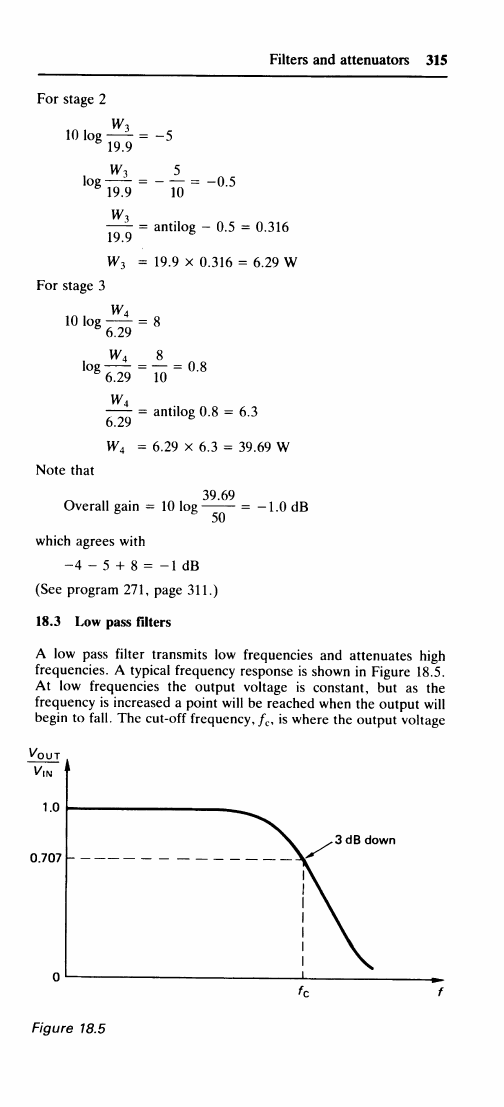

Filters and attenuators 315
For stage 2
W
3
19.9
antilog - 0.5 = 0.316
19.9 x 0.316 = 6.29 W
For stage 3
6.29
antilog 0.8 = 6.3
W
4
= 6.29 x 6.3 = 39.69 W
Note that
39.69
Overall gain = 10 ^g
-
^
-
= -1.0 dB
which agrees with
-4 - 5 + 8 = -1 dB
(See program 271, page 311.)
18.3
Low pass filters
A low pass filter transmits low frequencies and attenuates high
frequencies. A typical frequency response is shown in Figure 18.5.
At low frequencies the output voltage is constant, but as the
frequency is increased a point will be reached when the output will
begin to fall. The cut-off frequency, /
c
, is where the output voltage
VQVT
1.0
3dB
down
0.707
0 ...
