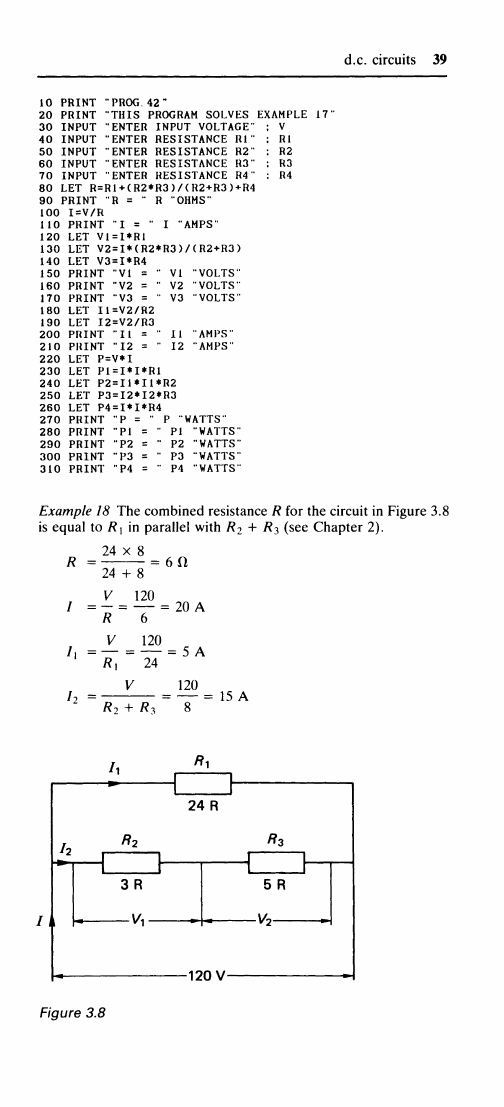

d.c. circuits 39
10 PRINT "PROG.42"
20 PRINT "THIS PROGRAM SOLVES EXAMPLE 17"
30 INPUT "ENTER INPUT VOLTAGE"
40 INPUT "ENTER RESISTANCE Rl"
50 INPUT "ENTER RESISTANCE R2"
60 INPUT "ENTER RESISTANCE R3"
70 INPUT "ENTER RESISTANCE R4"
80 LET R=R1+(R2*R3)/(R2+R3)+R4
90 PRINT "R = " R "OHMS"
100 I=V/R
110 PRINT "I = " I "AMPS"
120 LET V1=I*R1
130 LET V2=I*(R2*R3)/(R2+R3)
140 LET V3=I*R4
150 PRINT "VI = "
160 PRINT "V2 = "
170 PRINT "V3 = "
180 LET I1=V2/R2
190 LET I2=V2/R3
200 PRINT "II = "
210 PRINT "12 = '
220 LET P=V*I
230 LET P1=I*I*R1
240 LET P2=I1*I1*R2
250 LET P3=I2*I2*R3
260 LET P4=I*I*R4
270 PRINT "P = " P "WATTS"
280 PRINT "PI = " PI
