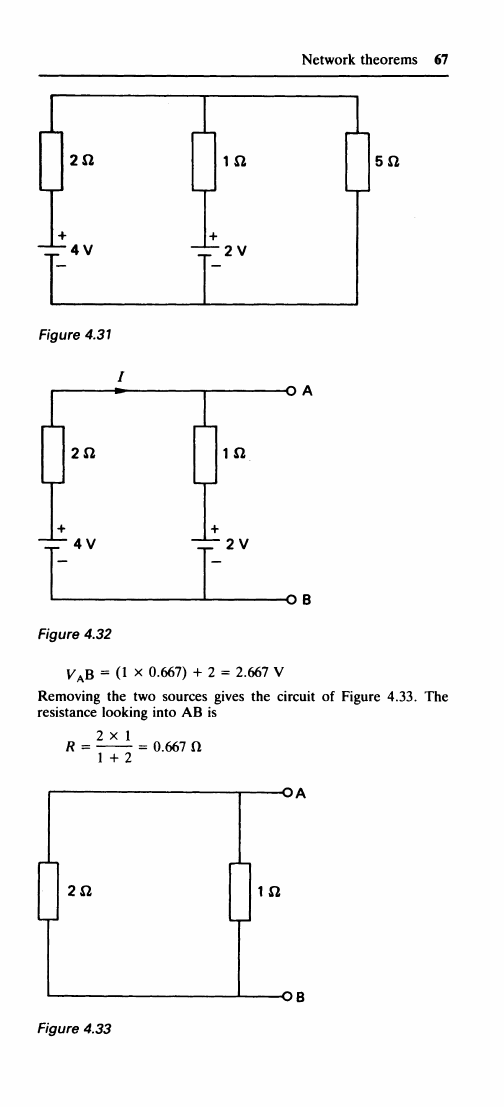

Network theorems 67
I
2ft
1 ft
±T4V
-±"2 V
5ft
Figure
4.31
-O A
2ft
1ft
^4V ^2V
-O B
Figure
4.32
V
A
B = (1 x 0.667) + 2 = 2.667 V
Removing the two sources gives the circuit of Figure 4.33. The
resistance looking into AB is
2 x 1
R = = 0.667 ft
1 + 2
-OA
2ft
1 ft
Figure
4.33
OB

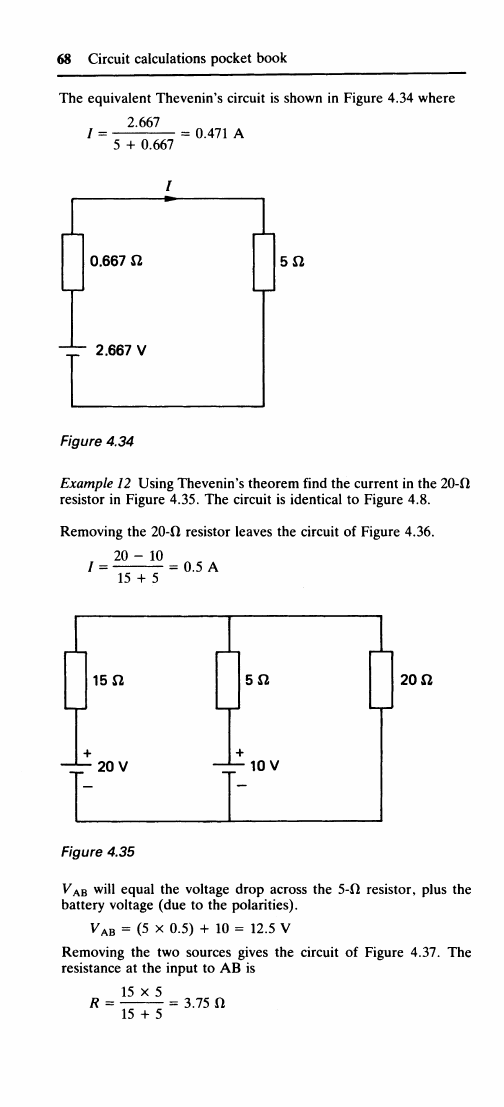

68 Circuit calculations pocket book
The equivalent Thevenin's circuit is shown in Figure 4.34 where
2.667
/ = = 0.471 A
5 + 0.667
1
0.667 ft
5ft
T
2.667 V
Figure
4.34
Example 12 Using Thevenin's theorem find the current in the 20-ft
resistor in Figure 4.35. The circui ...
