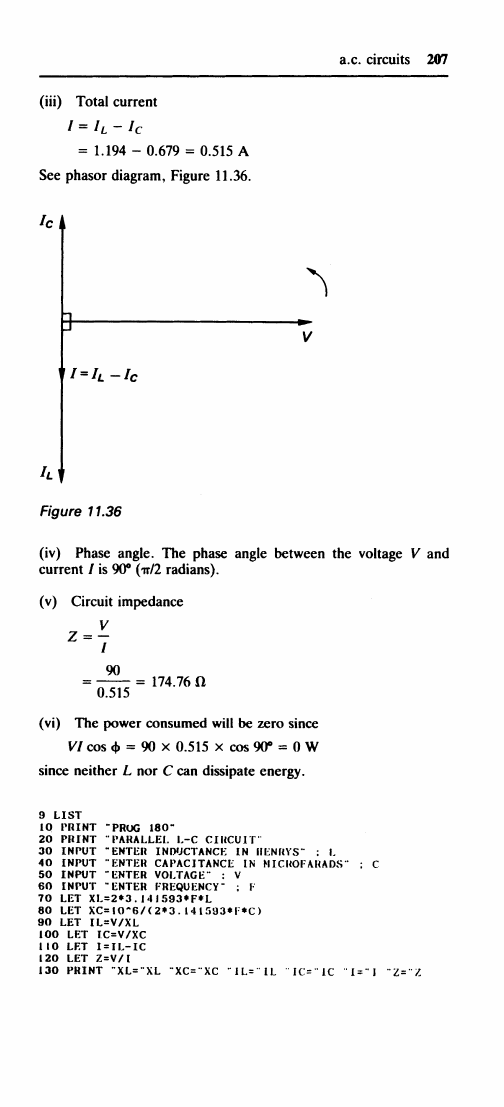

a.c. circuits 207
(iii) Total current
/ = l
L
~ Ic
= 1.194 - 0.679 = 0.515 A
See phasor diagram, Figure 11.36.
Figure
11.36
(iv) Phase angle. The phase angle between the voltage V and
current / is 90° (IT/2 radians).
(v) Circuit impedance
V
Z = -
/
90
= = 174.76 ft
0.515
(vi) The power consumed will be zero since
VI
cos
<f>
= 90 x 0.515 x cos 90° = 0 W
since neither L nor C can dissipate energy.
9 LIST
10 PRINT "PROG 180"
20 PRINT "PARALLEL L-C CIRCUIT
30 INPUT
-
ENTER INDUCTANCE IN HENRYS" ; L
40 INPUT "ENTER CAPACITANCE IN MICROFARADS" ; C
50 INPUT "ENTER VOLTAGE" : V
60 INPUT "ENTER FREQUENCY" ; F
70 LET XL=2*3.141593*F*L
80 LET XC=10
A
6/(2*3.141S93«F*C ...
