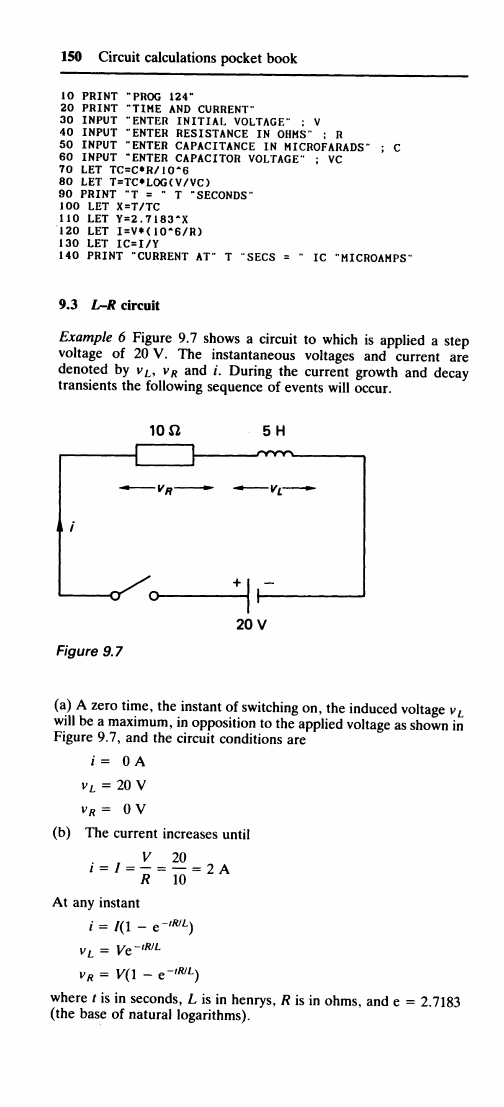

150
Circuit calculations pocket book
10 PRINT "PROG 124"
20 PRINT "TIME AND CURRENT"
30 INPUT "ENTER INITIAL VOLTAGE" : V
40 INPUT "ENTER RESISTANCE IN OHMS" ; R
50 INPUT "ENTER CAPACITANCE IN MICROFARADS" ; C
60 INPUT "ENTER CAPACITOR VOLTAGE" ; VC
70 LET TC=C*R/10
A
6
80 LET T=TC*LOG(V/VC)
90 PRINT "T = " T "SECONDS"
100 LET X=T/TC
110 LET Y=2.7183*X
120 LET I=V*(10*6/R)
130 LET IC=I/Y
140 PRINT "CURRENT AT" T "SECS = " IC "MICROAMPS"
9.3
L-R circuit
Example 6 Figure 9.7 shows a circuit to which is applied a step
voltage of 20 V. The instantaneous voltages and current are
denoted by v
L
, v
R
and
i.
During the current growth and decay
transient ...
