Content preview from Newnes Circuit Calculations Pocket Book

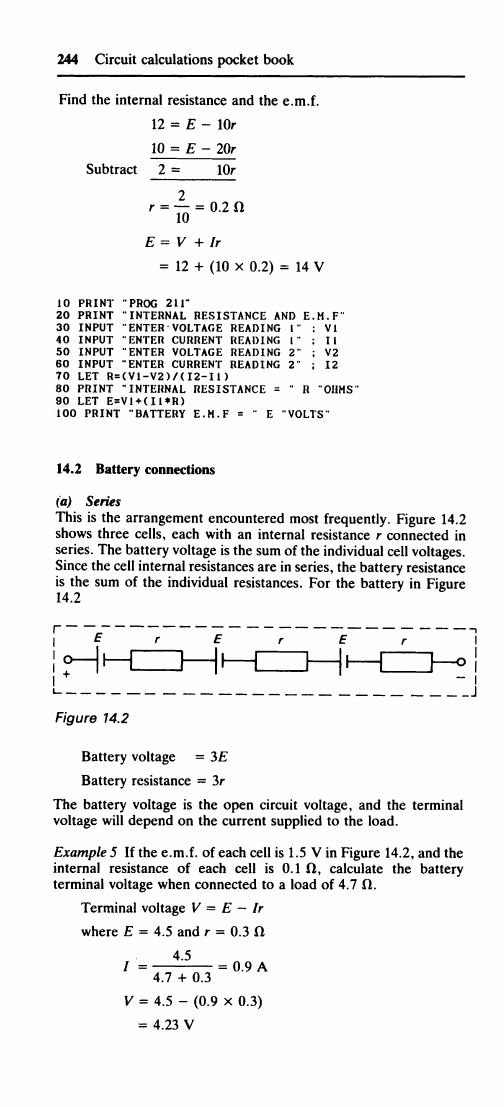

244
Circuit calculations pocket book
Find
the
internal resistance
and the e.m.f.
12
= E - lOr
10
= E - 20>
Subtract
2 = lOr
2
r=—
= 0.2 ft
10
E=V+Ir
=
12 + (10 x 0.2) =
14
V
10 PRINT "PROG
211"
20 PRINT "INTERNAL RESISTANCE
AND
E.M.F"
30 INPUT "ENTER VOLTAGE READING
1" : VI
40 INPUT "ENTER CURRENT READING
1" : II
50 INPUT "ENTER VOLTAGE READING
2" ; V2
60 INPUT "ENTER CURRENT READING
2" ; 12
70
LET
R=(V1-V2)/(I2-I1)
80 PRINT "INTERNAL RESISTANCE
= " R
"OHMS
90
LET
E=V1+(I1*R)
100 PRINT "BATTERY
E.M.F = " E
"VOLTS"
14.2
Battery connections
(a) Series
This
is the
arrangement encountered most frequently. Figure
14.2
shows three cells, each wit ...
