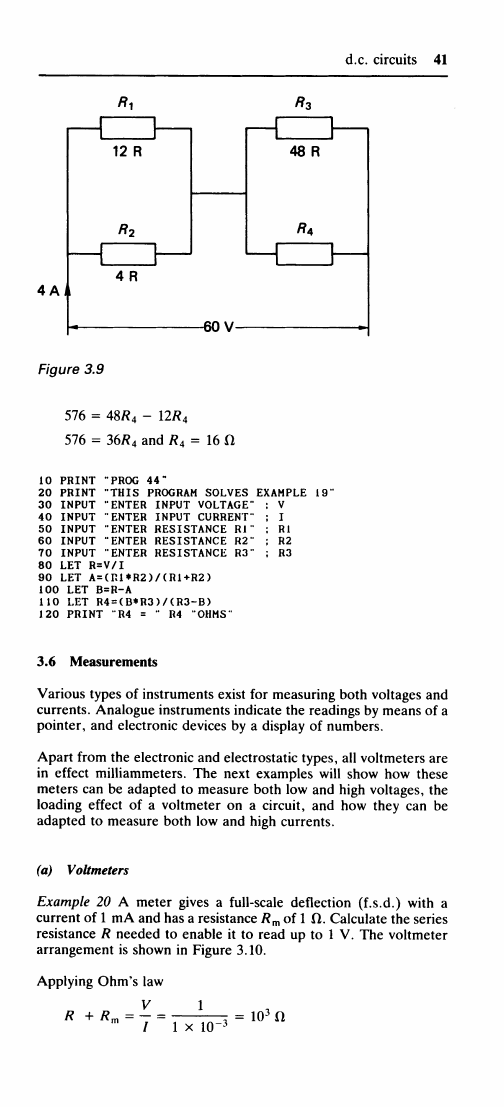

d.c. circuits 41
-60 V
Figure
3.9
576 = 48/?
4
- 12/?
4
576 = 36/?
4
and R
4
= 16 ft
10 PRINT "PROG 44"
20 PRINT "THIS PROGRAM SOLVES EXAMPLE 19"
30 INPUT "ENTER INPUT VOLTAGE" : V
40 INPUT "ENTER INPUT CURRENT" ; I
50 INPUT "ENTER RESISTANCE Rl" ; Rl
60 INPUT "ENTER RESISTANCE R2" ; R2
70 INPUT "ENTER RESISTANCE R3" ; R3
80 LET R=V/I
90 LET A=(R1*R2)/(R1+R2)
100 LET B=R-A
110 LET R4=(B*R3)/(R3-B)
120 PRINT "R4 = " R4 "OHMS"
3.6 Measurements
Various types of instruments exist for measuring both voltages and
currents. Analogue instruments indicate the readings by means of a
pointer, and electronic devices by a display of numbers.
Apart from the
