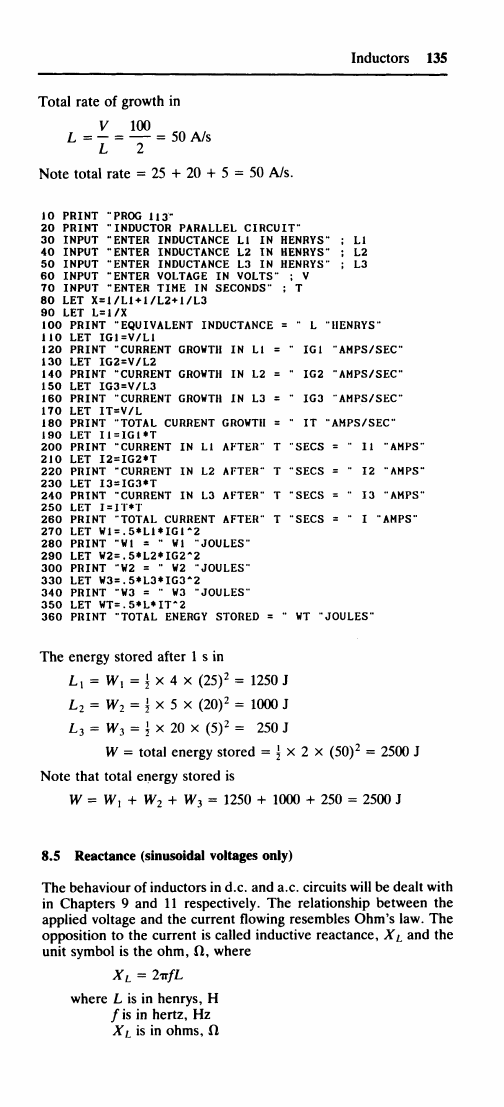

Inductors 135
Total rate of growth in
V 100
L =
= = 50 A/s
L 2
Note total rate = 25 + 20 + 5 = 50 A/s.
10 PRINT "PROG 113"
20 PRINT "INDUCTOR PARALLEL CIRCUIT"
30 INPUT "ENTER INDUCTANCE LI IN HENRYS" ; LI
40 INPUT "ENTER INDUCTANCE L2 IN HENRYS" ; L2
50 INPUT "ENTER INDUCTANCE L3 IN HENRYS" ; L3
60 INPUT "ENTER VOLTAGE IN VOLTS
70 INPUT "ENTER TIME IN SECONDS"
80 LET X=1/L1+1/L2+1/L3
90 LET L=l/X
100 PRINT "EQUIVALENT INDUCTANCE
110 LET IG1=V/L1
120 PRINT "CURRENT GROWTH IN LI
130 LET IG2=V/L2
140 PRINT "CURRENT GROWTH IN L2
150 LET IG3=V/L3
160 PRINT "CURRENT GROWTH IN L3
170 LET IT=V/L
180 PRINT "TOTAL CURRENT GROWTH
190 LET I1=IG1*
