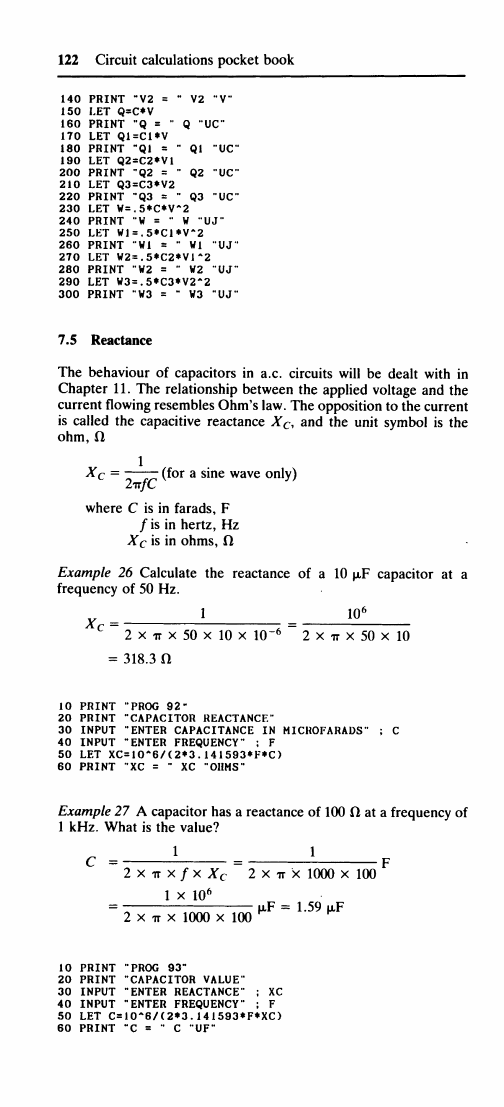

122
Circuit calculations pocket book
140 PRINT "V2 = " V2 "V"
150 LET Q=C*V
160 PRINT "Q = " Q "UC"
170 LET Q1=C1*V
180 PRINT "Ql = " Ql "UC"
190 LET Q2=C2*V1
200 PRINT "Q2 = " Q2 "UC"
210 LET Q3=C3*V2
220 PRINT "Q3 = " Q3 "UC"
230 LET W=.5*C*V*2
240 PRINT "V = " W "UJ"
250 LET W1=.5*C1*V*2
260 PRINT "Wl = " Wl "UJ"
270 LET W2=.5*C2*V1*2
280 PRINT "W2 = " W2 "UJ"
290 LET W3=.5*C3*V2"2
300 PRINT "W3 = " W3 "UJ"
7.5
Reactance
The
behaviour of capacitors in a.c. circuits will be dealt with in
Chapter
11. The relationship between the applied voltage and the
current
flowing
resembles
Ohm's law. The opposition to the current
is
called the capacitiv ...
