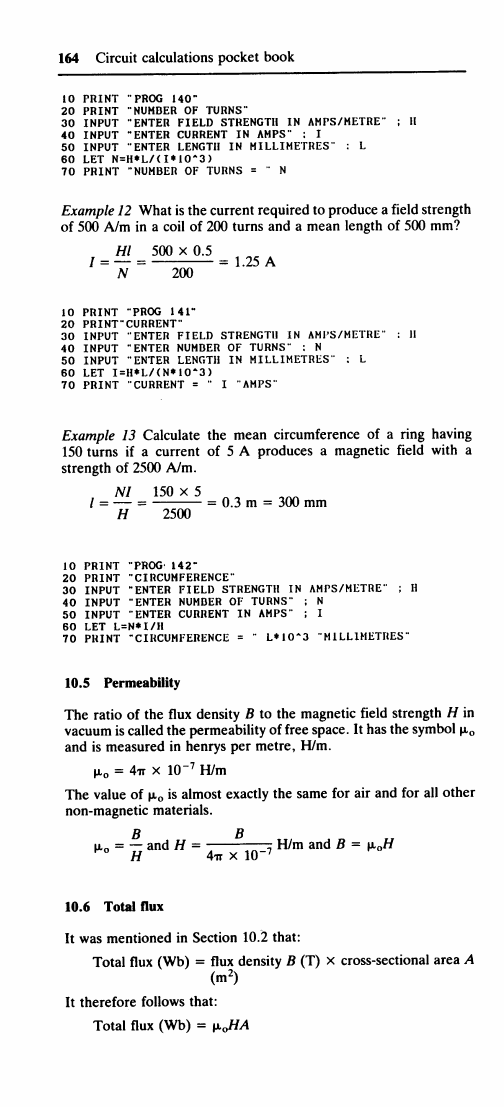

164 Circuit calculations pocket book
10
PRINT "PROG 140"
20
PRINT "NUMBER OF TURNS"
30
INPUT "ENTER FIELD STRENGTH IN AMPS/METRE" ; II
40
INPUT "ENTER CURRENT IN AMPS" : I
50
INPUT "ENTER LENGTH IN MILLIMETRES" : L
60
LET N=H*L/(I*10*3)
70
PRINT "NUMBER OF TURNS = " N
Example 12 What is the current required to produce a field strength
of 500 A/m in a coil of 200 turns and a mean length of 500 mm?
HI 500 x 0.5
/ == = 1.25 A
N 200
10
PRINT "PROG 141"
20
PRINT"CURRENT"
30
INPUT "ENTER FIELD STRENGTH IN AMPS/METRE" : 11
40
INPUT "ENTER NUMBER OF TURNS" : N
50
INPUT "ENTER LENGTH IN MILLIMETRES" : L
60
LET I=H*L/(N*10*3)
70
PRINT "CURRENT = "
