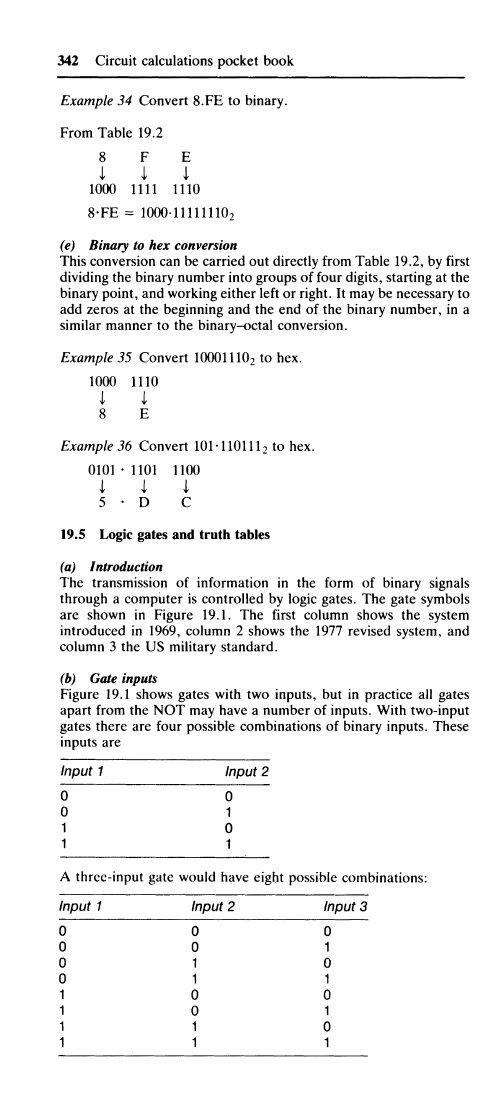

342 Circuit calculations pocket book
Example
34
Convert
8.FE to
binary.
From Table
19.2
8
F E
111
1000
1111 1110
8-FE =
IOOO-IIIIIIIO2
(e) Binary
to hex
conversion
This conversion
can be
carried
out
directly from Table
19.2, by
first
dividing
the
binary number into groups
of
four digits, starting
at the
binary point,
and
working either left
or
right.
It may be
necessary
to
add zeros
at the
beginning
and the end of the
binary number,
in a
similar manner
to the
binary-octal conversion.
Example
35
Convert 10001110
2
to hex.
1000
1110
1
1
8
E
Example
36
Convert 101-110111
2
to hex.
0101
1101 1100
5
D C
19.5 Logic gates
and
truth tables
(a) Introduction ...
