Using a class diagram for Canyon Bunny

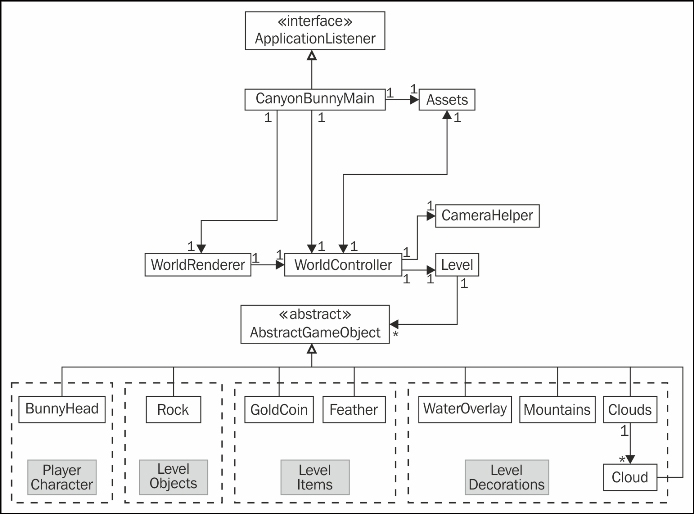

We will now take a closer look at the architecture of Canyon Bunny. A so-called class diagram is used to help us visualize and explain the architecture in a standardized and structured form. The class diagram is illustrated as follows:

In this class diagram, you will find a lot of classes that will be used in this game. It also shows important information about the kind of classes and how they are interconnected. Firstly, before we continue, don't be scared of all these boxes, lines, and arrows pointing in every direction. If you are not familiar with reading class diagrams or UML in general, take a look at ...
