Chapter 7

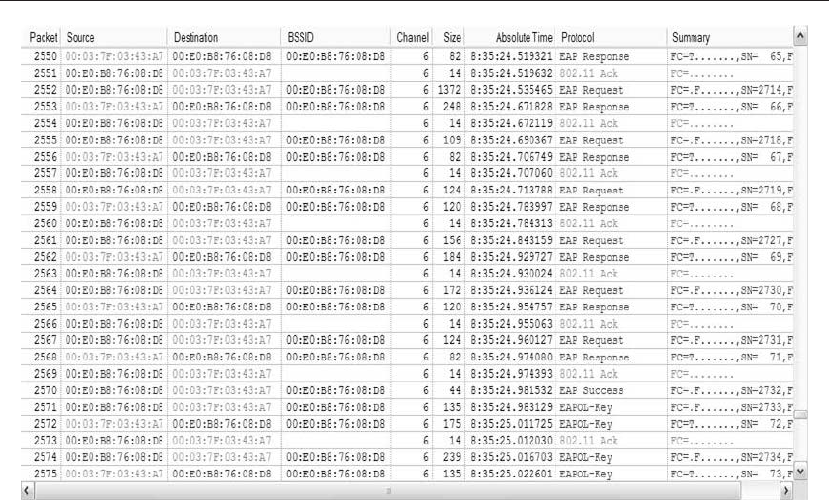

Figure 7.10: WPA2-Enterprise Mode Monitor M3 Frames 2550–2575.
STA has moved sufficiently far from the first AP that the driver has determined that it must
roam, so there is a brief lack of connectivity corresponding to the Discovery Delay in
Figure 7.7.
The Reassociation Delay shown in Figure 7.7 starts in frame 2529, as shown Figure 7.9. We
attempted to synchronize the clocks of the different sniffers used in these tests using TIMEP
at the start of the tests, so there should be some correspondence in the timestamps across
sniffers. Nevertheless, the time granularity that we can obtain from this kind of multiclock
synchronization is still
