5. Real-Time Global Illumination Using Slices 277

0.6

0.5

0.4

0.3

0.2

Valid Region’s Contribution to Irradiance

0.1

0

0 0.5 1 1.5

Transverse Distance Past Border (t)/distance from Plane (d)

2 2.5 3 3.5 4 4.5 5

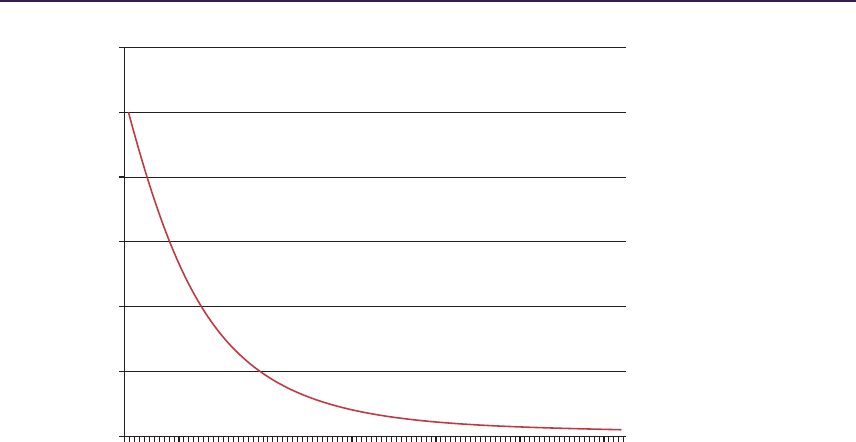

Figure 5.7. Contribution of the valid region to irradiance when sampling beyond the

border.

5.4.6 Results

Before moving on, it’s useful to compare the approximation that has been de-

scribed, with the ground truth result.

Figure 5.8 shows the scene. The black square with the cyan circle is the emis-

sive plane, at y = 0. We’ll evaluate the irradiance at points on the transparent

square, which are the points −32 ≤ x ≤ +32, −64 ≤ y ≤ 0, z = 0. For simplicit ...
