Aligning relative to text height

The text-top and text-bottom values align an element relative to the top and bottom edges of the surrounding text, respectively. Although it depends on the font design, the “top” of text corresponds roughly to the top of the ascenders and the “bottom” of text corresponds roughly to the bottom of the descenders. More accurately, it is the top and bottom of the text box for that font and is derived from the font size of the parent element. Replaced elements in the line are ignored in the calculation of the top and bottom of the text box.

Tip

The inline box model for the calculation of line height is discussed in detail in Chapter 19.

Figure 18-16 shows elements aligned with text-top and text-bottom. It is easy to see that the aligned elements are positioned relative to the text and not to the overall height of the line.

    <p>A tall <img style="vertical-align: middle" src="img/placeholder_tall.gif" alt=
    "" /> image and a short <imgstyle="vertical-align: text-top" src="img/
    placeholder_short.gif" alt="" /> image.</p>

    <p>A tall <img style="vertical-align: middle" src="img/placeholder_tall.gif" alt=
"" /> image and a short <img style="vertical-align: text-bottom" src="img/
    placeholder_short.gif" alt="" /> image</p>

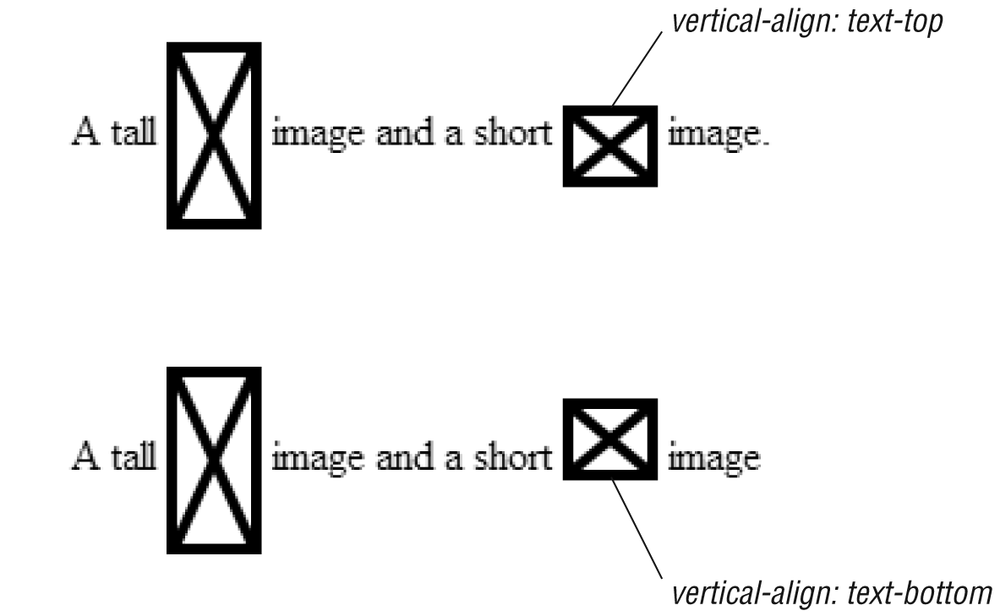

Figure 18-16. Text-top and text-bottom

The final text-based alignment is middle, which aligns the vertical midpoint of the element (typically an image) ...
