11.3. Diamond 330HiFi audio DSP Core Interfaces

As shown in Figure 11.4, the Diamond 330HiFi audio DSP core has a 64-bit implementation of the Xtensa PIF (main processor interface) bus and separate interfaces for the one local instruction RAM, two local data RAMs, and the 2-way set-associative instruction and data caches.

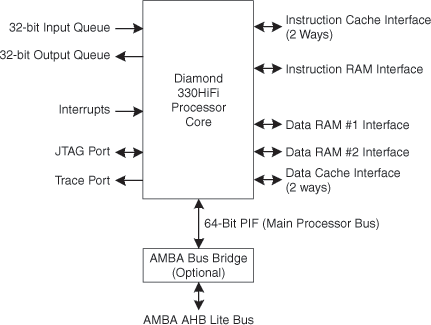

Figure 11.4. The Diamond 330HiFi audio DSP core has a 64-bit implementation of the Xtensa PIF (main processor interface) bus and separate interfaces for the one local instruction RAM, two local data RAMs, and the 2-way set-associative instruction and data caches.
