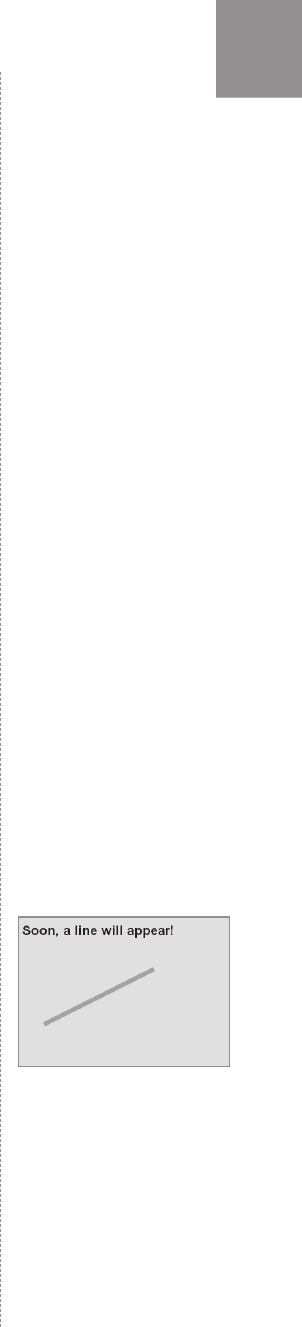

<h1>Soon, a line will appear!</h1>

<canvas id="picture" width="600" height="400"></canvas>

...

Then, in the <head> section of the HTML, include a link to a JavaScript le, which you will use to draw

the line (you’ll create this shortly). Also, insert an onload call to the function main() in the body tag,

as shown here (I’m also adding an inline style; please include your own external style sheet to dene

the page layout as you see t ):

...

<title>Drawing a line</title>

<script type="text/javascript" src="default.js"></script>

</head>

<body onload="main()" style="background-color: rgb(220,220,220)">

...

Next, create a default.js le containing the following JavaScript, and put it in the same folder as

index.html:

function main() {

// grab the canvas

var canvas = document.getElementById('picture');

var ctx = canvas.getContext('2d');

// set the color and line width

ctx.strokeStyle = 'rgba(40,200,180,1)';

ctx.lineWidth = 8;

// draw a line

ctx.beginPath();

ctx.moveTo(40, 140);

ctx.lineTo(240, 40);

ctx.stroke();

}

That’s not a lot of code—you’re grabbing the canvas element using the ID you dened (picture),

then you’re conguring the line style, and then you’re moving the line from start point (x and y) to

end point. Now open your index.html le in a recent version of Opera, Firefox, or Safari, and ...
