カラーバーのカスタマイズ
259
として、カラー表示グラフを提供しています。まず最初に、使用するモジュールをインポートして
Jupyter notebook
の設定を行います。
In[1]: import matplotlib.pyplot as plt
plt.style.use('classic')
In[2]: %matplotlib inline
import numpy as np
これまでに何度も見てきたように、最も単純なカラーバーは
plt.colorbar()
メソッドで作成で
きます（図 4-49）。
In[3]: x = np.linspace(0, 10, 1000)
I = np.sin(x) * np.cos(x[:, np.newaxis])
plt.imshow(I)
plt.colorbar();

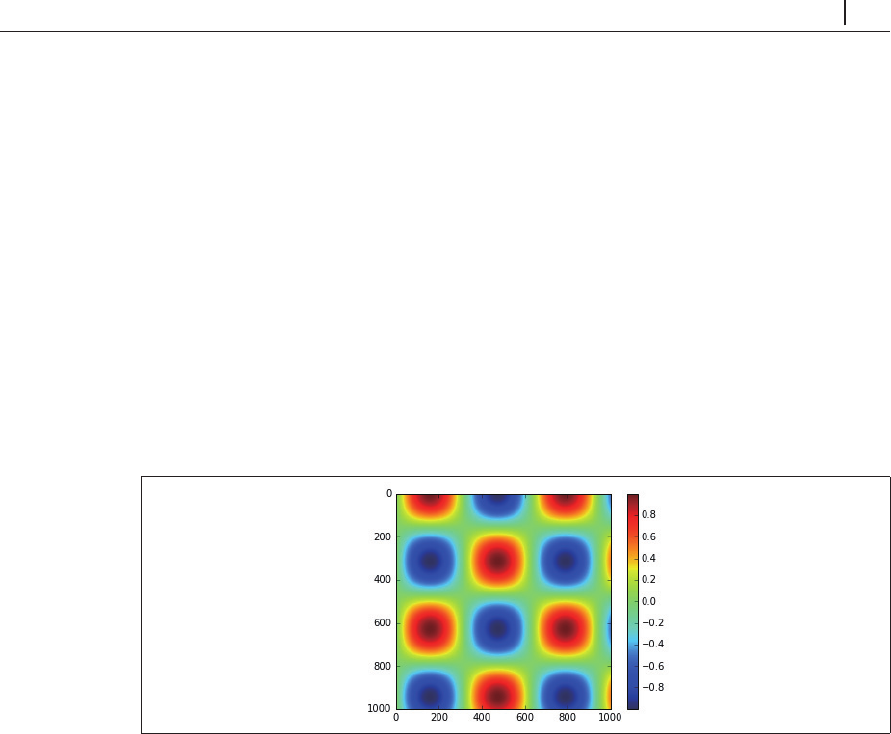

図4-49 単純なカラーバー
ここでは、これらのカラーバーをカスタマイズし、さまざまな状況で効果的に使用するための方
法について説明します。
4.9.1
カラーバーのカスタマイズ
描画関数に対して
cmap
引数を使用して、カラーマップ（
colormap

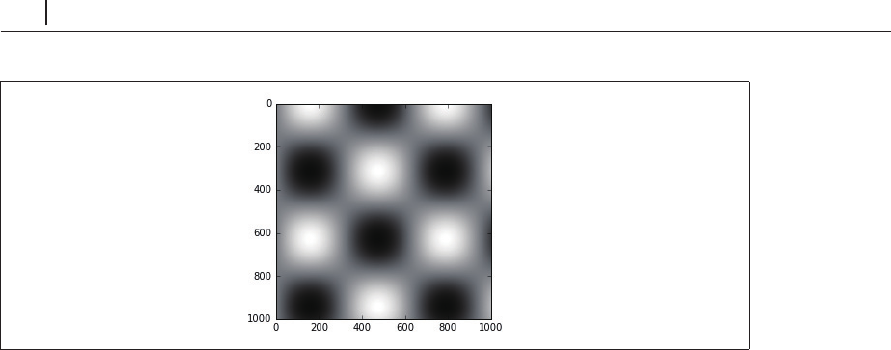

）を指定できます（図4-50）。
In[4]: plt.imshow(I, cmap='gray');
260
4
章
Matplotlib ...
