362 CHAPTER 8 / ARITHMETIC DEVICES AND ARITHMETIC LOGIC UNITS (ALUs)

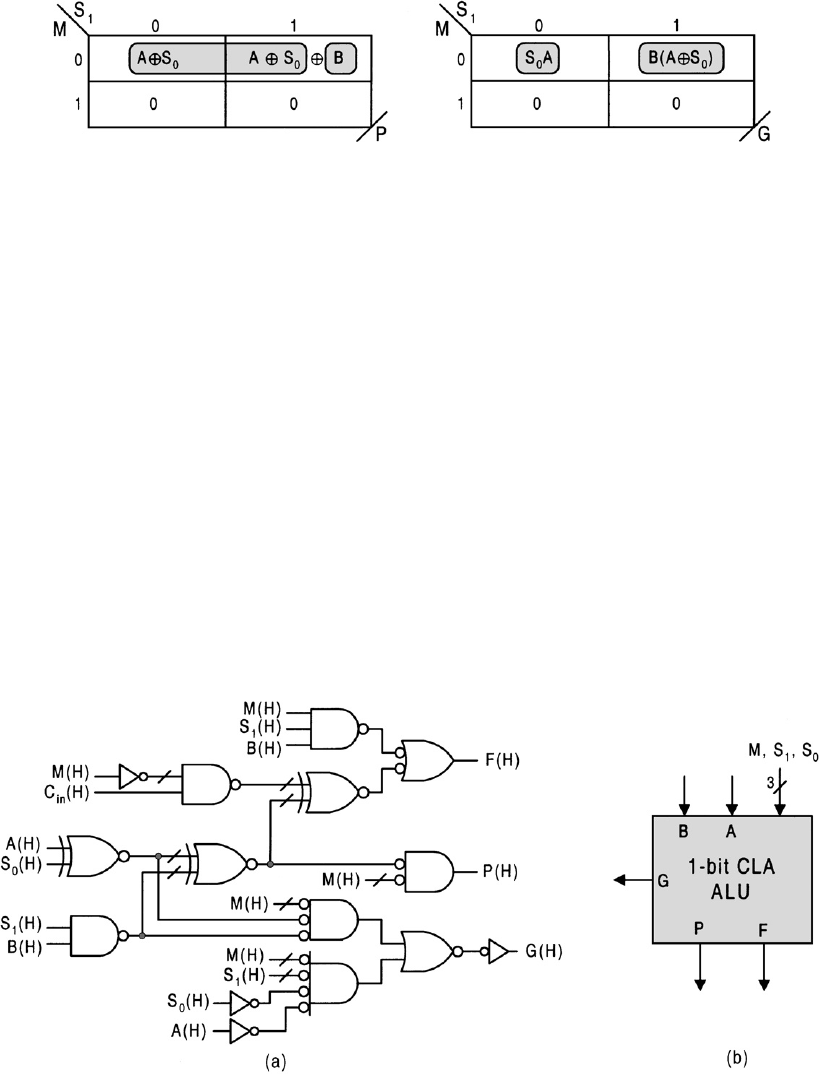

FIGURE 8.31
EV K-maps and minimum cover for carry propagate (P) and carry generate (G) parameters given in
Fig. 8.30.
capability. Here, the C
out
functions of Fig. 8.26 are replaced with those for carry propagate,
P, and carry generate, G, which are derived from Eqs. (8.2) and (8.7). Logic 0’s are placed
in the P and G columns for the logic operations to indicate false carry rejection, as was
done in the operation table of Fig. 8.26.
The design of the 1-bit slice ALU of Fig. 8.30 continues by plotting the P and G outputs in
second-order K-maps as was the case for C
out
in Fig. 8.27d.
