150
6
章
サンキーダイアグラム
サンキーダイアグラムとは、矢印の太さで工程間の流量の増減を表すダイ
アグラムのことです。

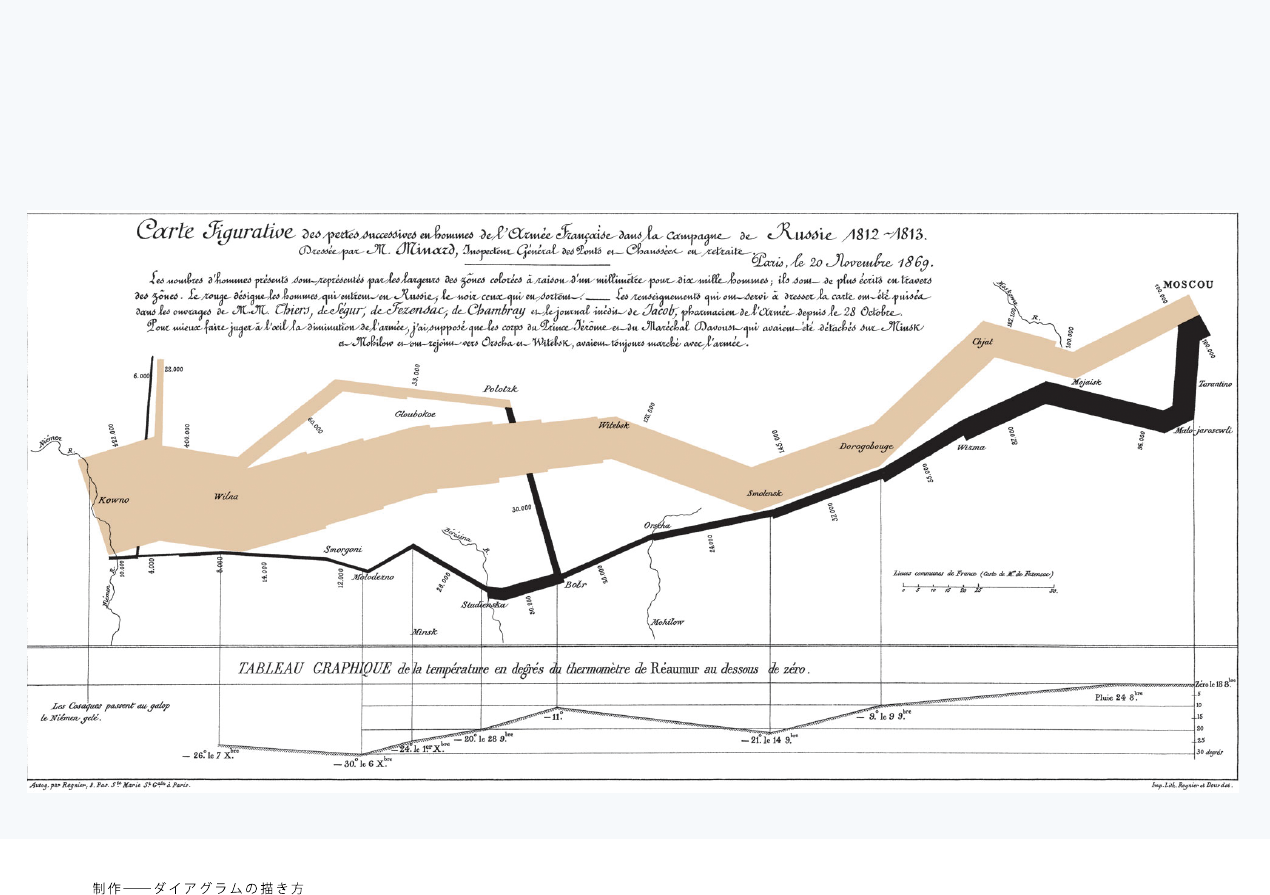

中でも有名なのがフランスの土木技師シャルル・ミナールによる「ロシア戦
役地図」（図6-8）で、これはナポレオン・ボナパルトが1812年に行ったロシ
ア遠征で軍勢が衰えていく様子を量的に表現したサンキーダイアグラムです。
図6-8 ナポレオンのロシア戦役（1812年）を表したミナールの有名な図表はサンキーダイアグラムの一種
6.3 情報のデザイン
151

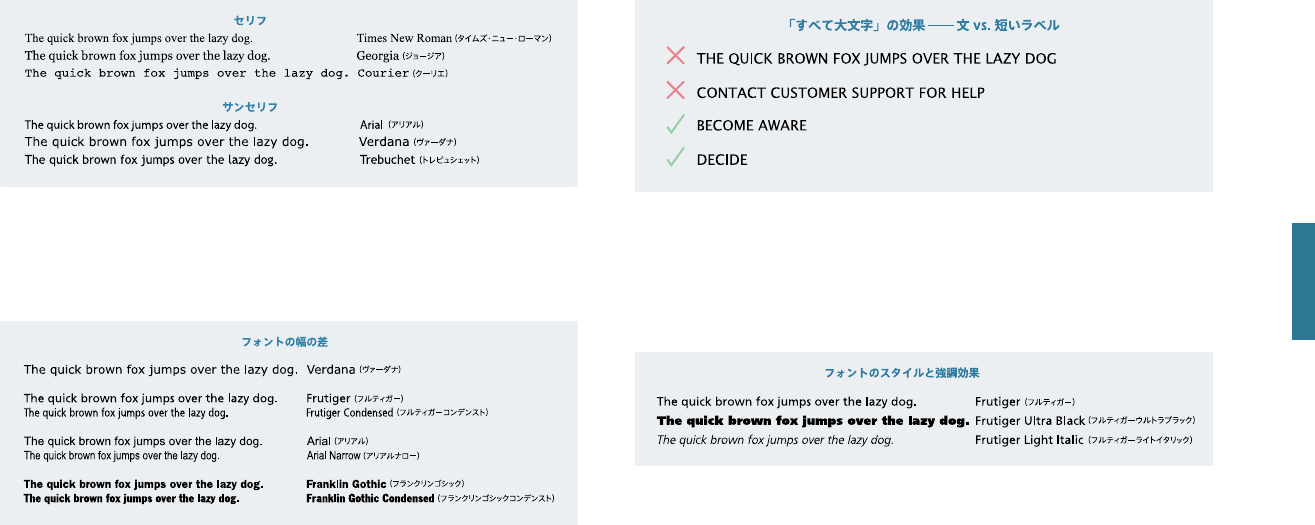

図6-9a 活字の書体
─
「セリフ」と「サンセリフ」の 2種類がある。「セリフ」そのものは文
字の線の端にある小さな飾りのことで、「サンセリフ」はこの小さな飾りをもたない書体を
指す。ダイアグラムでは通常、情報の大部分にサンセリフを使い、セリフは見出しに使う
ことがある。ひとつのダイアグラムに用いる書体は1 〜 2 種類にとどめるのが最適
図6-9b フォントの高さと幅
─
ダイアグラムに大量の情報を盛り込みたいあまりにフォ
ントサイズを下げようかと考える場合もあるが、小さすぎて読みにくくなっては困るので、
コンテンツも無理のない範囲内で削り込む必要がある。
フォントの幅も要注意。たとえばVerdanaは幅広なフォントなので避けたほうがよい。 ...
